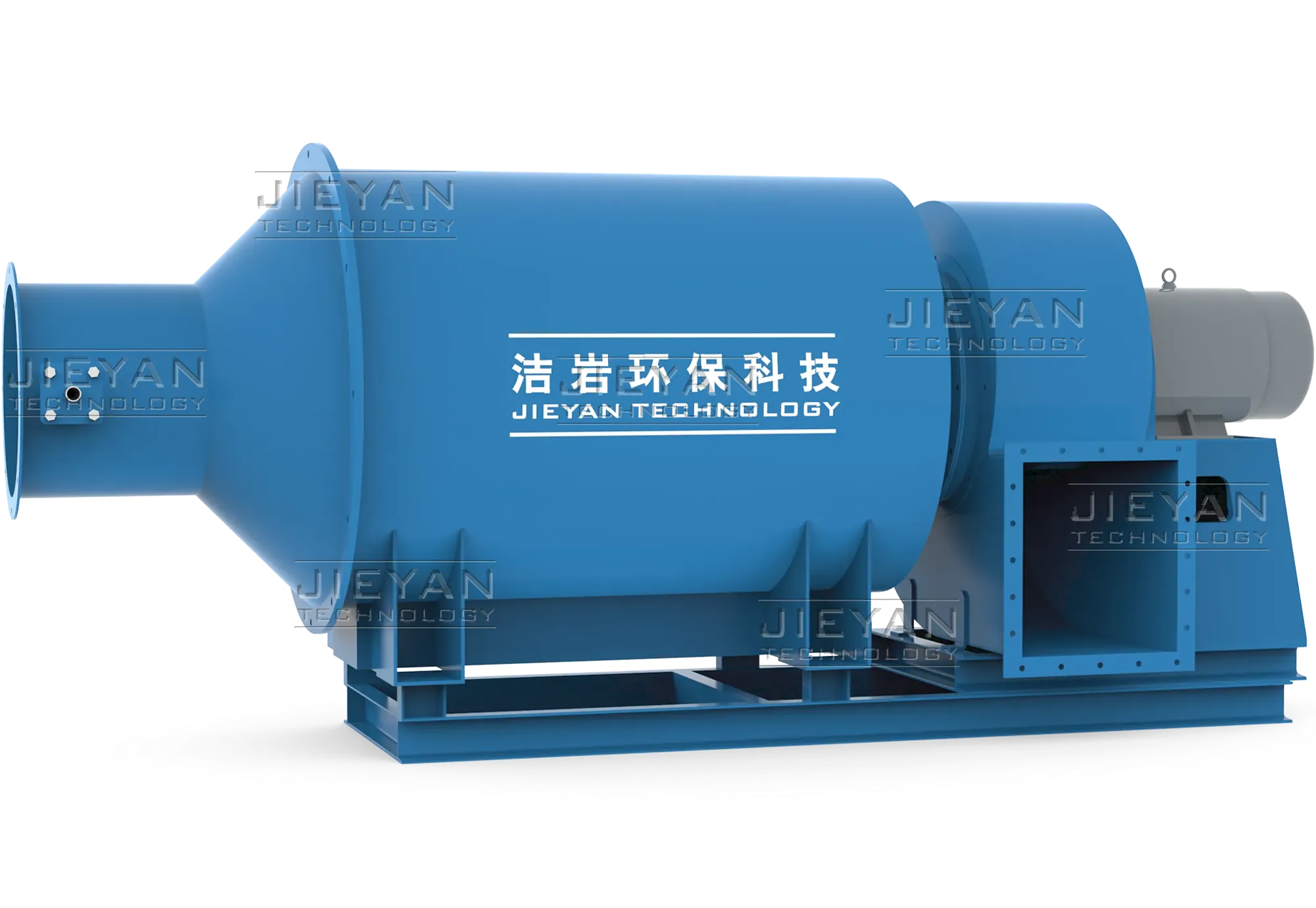

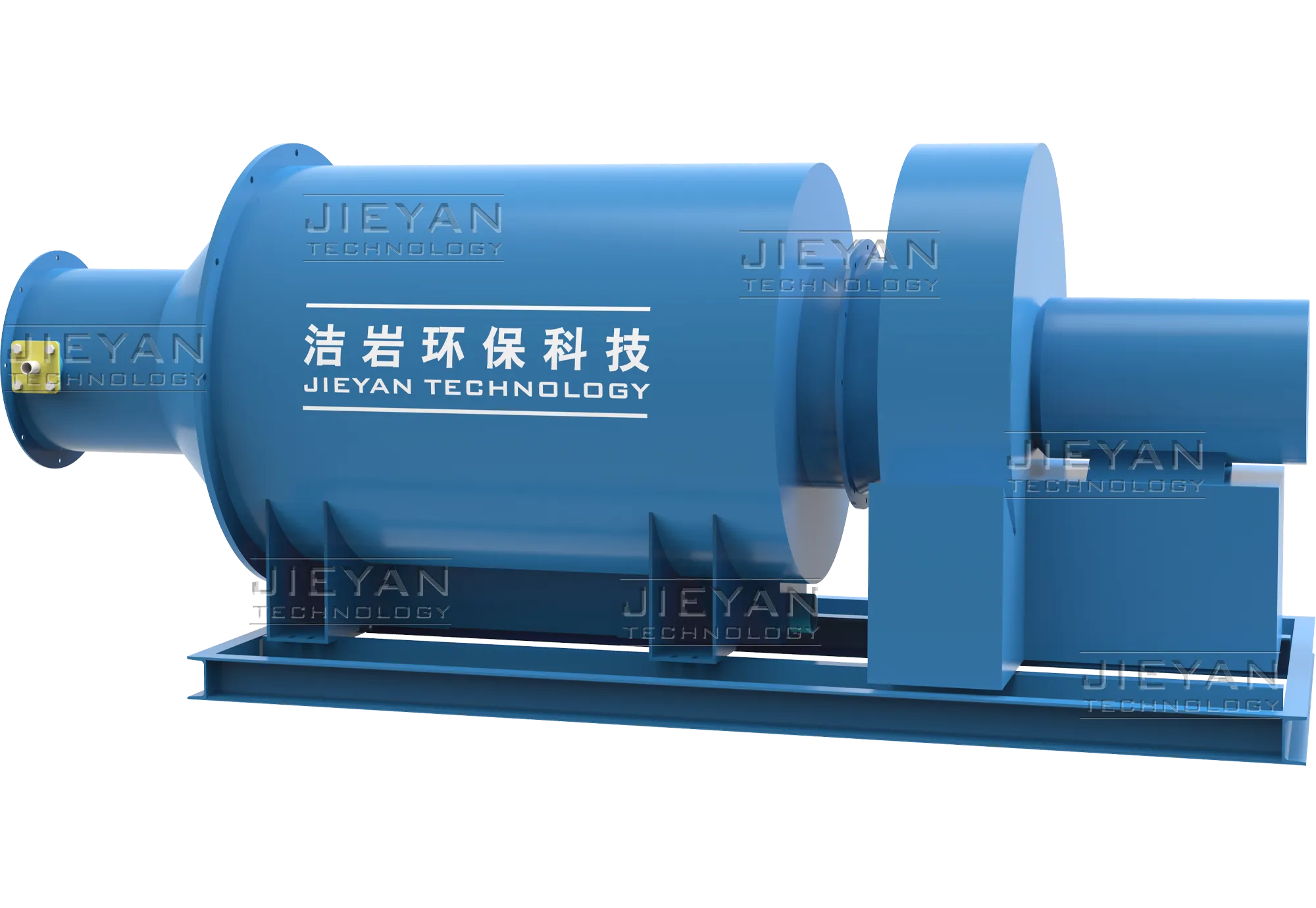

MDC-W wet dust collector

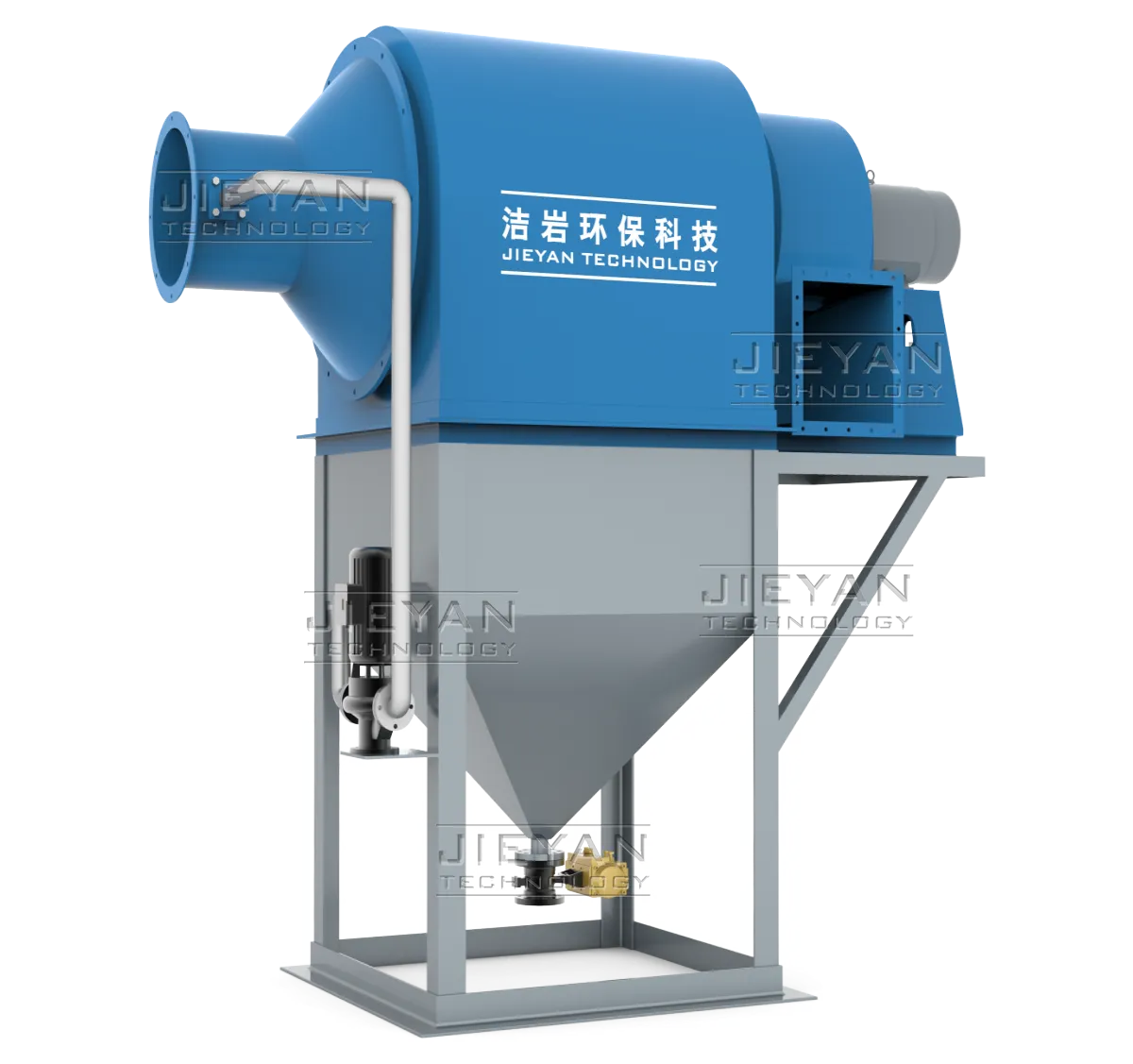

The MDC series W-type horizontal dust collector is designed with the concept of extreme compactness and low resistance, making it particularly suitable for installation environments with limited space height or area. Its dehydration and defogging device is highly integrated with the fan volute, with a compact overall structure and small volume. The Wen rod layer, defogging device, and fan are arranged in a straight line, allowing the airflow to flow smoothly along the line, significantly reducing system resistance and improving operational efficiency. Internally designed with no easily clogged components, it avoids the risk of blockage that may be caused by traditional defogging boards or wire mesh, and operates more stably and reliably. In addition, a circulating spray system can be optionally equipped to further reduce sewage discharge and enhance environmental performance. The W-shaped dust collector, with its low height, small volume, and efficient and stable operating performance, has become an ideal choice under complex spatial conditions.

•

Moisture-laden Dust Treatment

•

High-temperature Caking Dust Control

•

Coal Transfer Dust Control

•

Coal Washing Dust Control

Technical Consultation

jieyanchina@163.com

Wet dust collector,Wet Collector,wet scrubber

Structure and Principle

The MDC series W-type horizontal dust collector is designed with the concept of extreme compactness and low resistance, making it particularly suitable for installation environments with limited space height or area. The dehydration and defogging device is highly integrated with the fan volute, resulting in a compact overall structure and small volume. The Wen's rod layer, defogging device, and fan are arranged in a straight line to ensure smooth airflow along the line, significantly reducing system resistance and improving operational efficiency. Internally designed with no easily clogged components, it avoids the risk of blockage that may be caused by traditional defogging boards or wire mesh, and operates more stably and reliably. In addition, a circulating spray system can be optionally equipped to further reduce sewage discharge and enhance environmental performance. The W-shaped dust collector, with its low height, small volume, and efficient and stable operating performance, has become an ideal choice under complex spatial conditions.

① Air Inlet

② Spray System

③ Venturi Rod Layer

④ Mist Eliminator

⑤ Centrifugal Fan

⑥ Air Outlet

Technical Features

Venturi Rod Efficiency

The MDC series integrates an innovative Venturi rod layer that splits incoming air into multiple smaller channels. This design maintains steady flow with minimal pressure drop while intensifying the Venturi effect for superior dust capture - achieving the perfect balance between maximum efficiency and minimal resistance.

Advanced Two-Stage Cyclonic Separation

Our unique dual-cyclone design effectively captures and isolates moisture from the air stream, preventing droplet re-entrainment. This advanced system ensures maximum moisture removal efficiency, delivering perfectly clean, dry exhaust air.

Space-Saving Straight-Through Design

The MDC-W series features a streamlined linear layout with all components arranged in sequence. This straight-through airflow path minimizes resistance while the compact footprint makes it ideal for space-limited installations.

High-Performance Integrated Fan

Equipped with an energy-efficient centrifugal fan delivering over 3500Pa pressure, the MDC-W series provides powerful suction for most industrial applications, ensuring reliable and consistent operation.

Superior Corrosion Protection

Each unit receives mechanical blasting to SA2.5 standard before application of a triple-layer protective coating system. With a total thickness exceeding 200μm, this advanced finish provides exceptional corrosion and weather resistance.
