TE Enclosed Vehicle Loading Spouts

Enclosed Vehicle Loading Spouts (TE Series) are designed to load dry bulk materials from storage bins, silos, conveyors, and other discharge points into enclosed truck trailers or railcars. These rugged standard-duty spouts are available in travle lengths from 1 meter to 3 meters. Loading rates can be up to 250 m³ per hour depending on product being loaded.

•

Fly ash bulk machine

•

Cement Tank Car

•

Grain Tank Car

•

Fertilizer Tank Car

•

Closed train compartment

Technical Consultation

jieyanchina@163.com

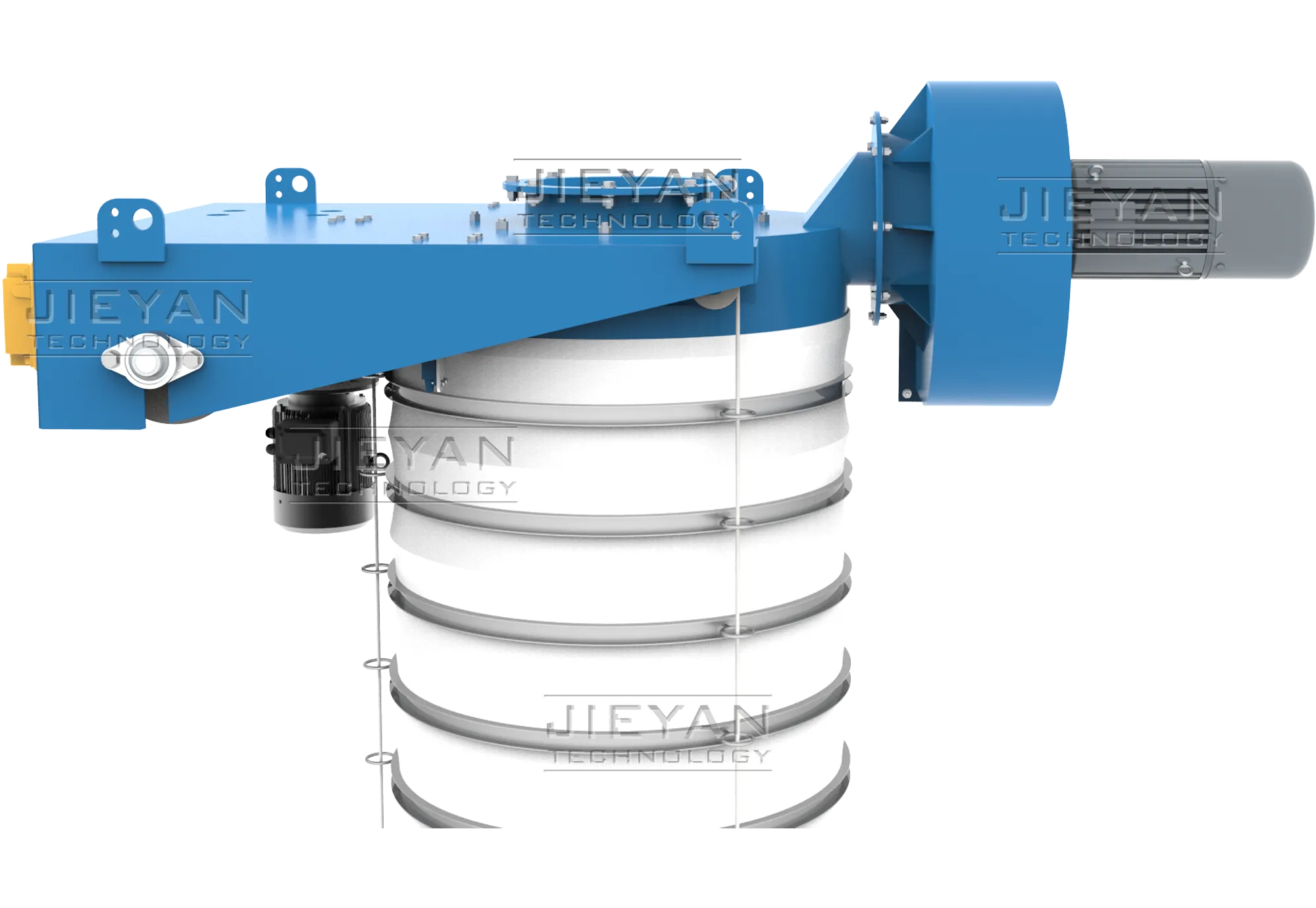

Structure and Principle

① Three cable hoist system providing maximum spout stability

② Compact design for easy transport and installation

③ Integrated control cabinet with remote panel

④ Full up/down limit switch

⑤ Slack cable limit switch

⑥ 20 OZ. Polyester outer sleeve

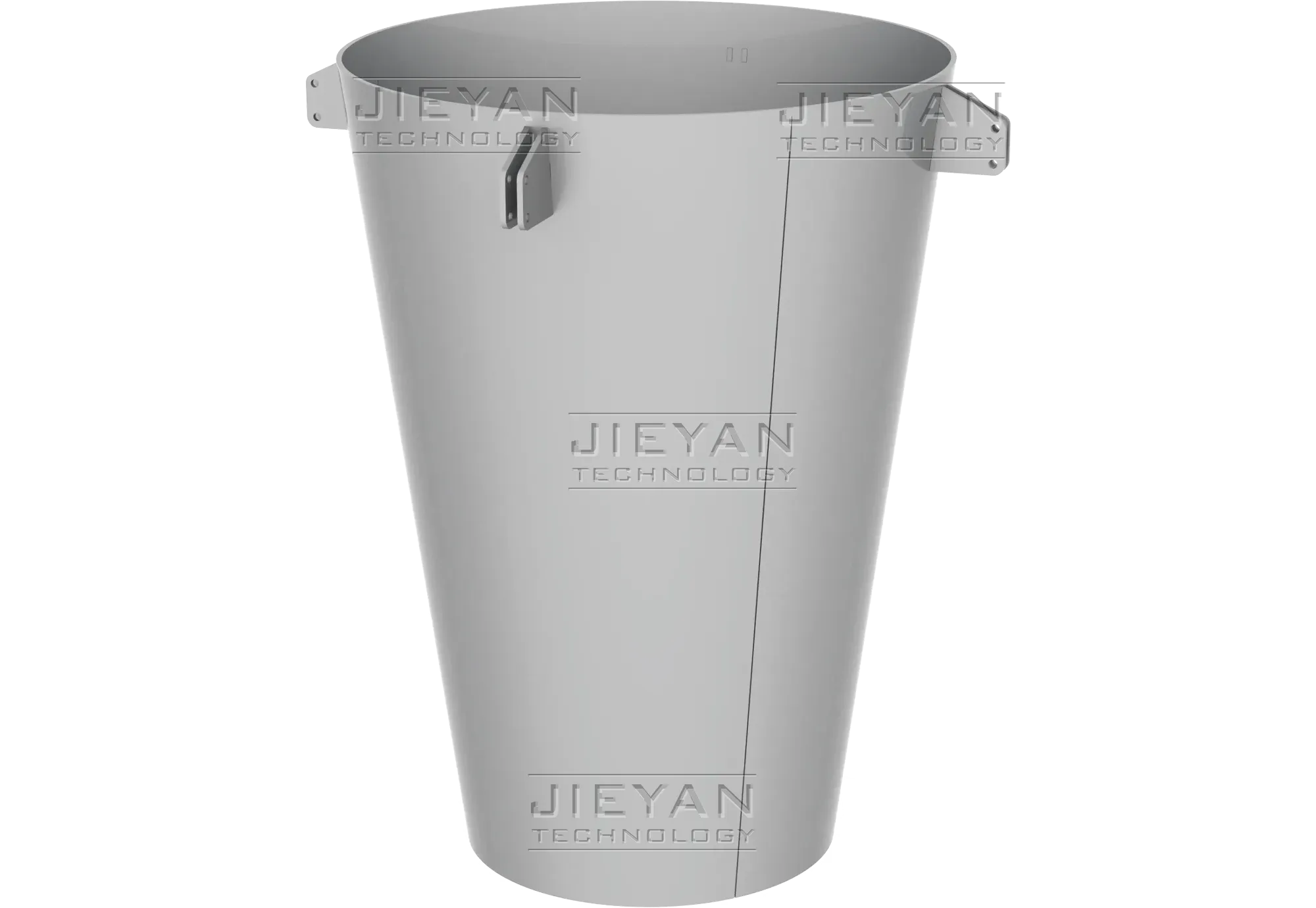

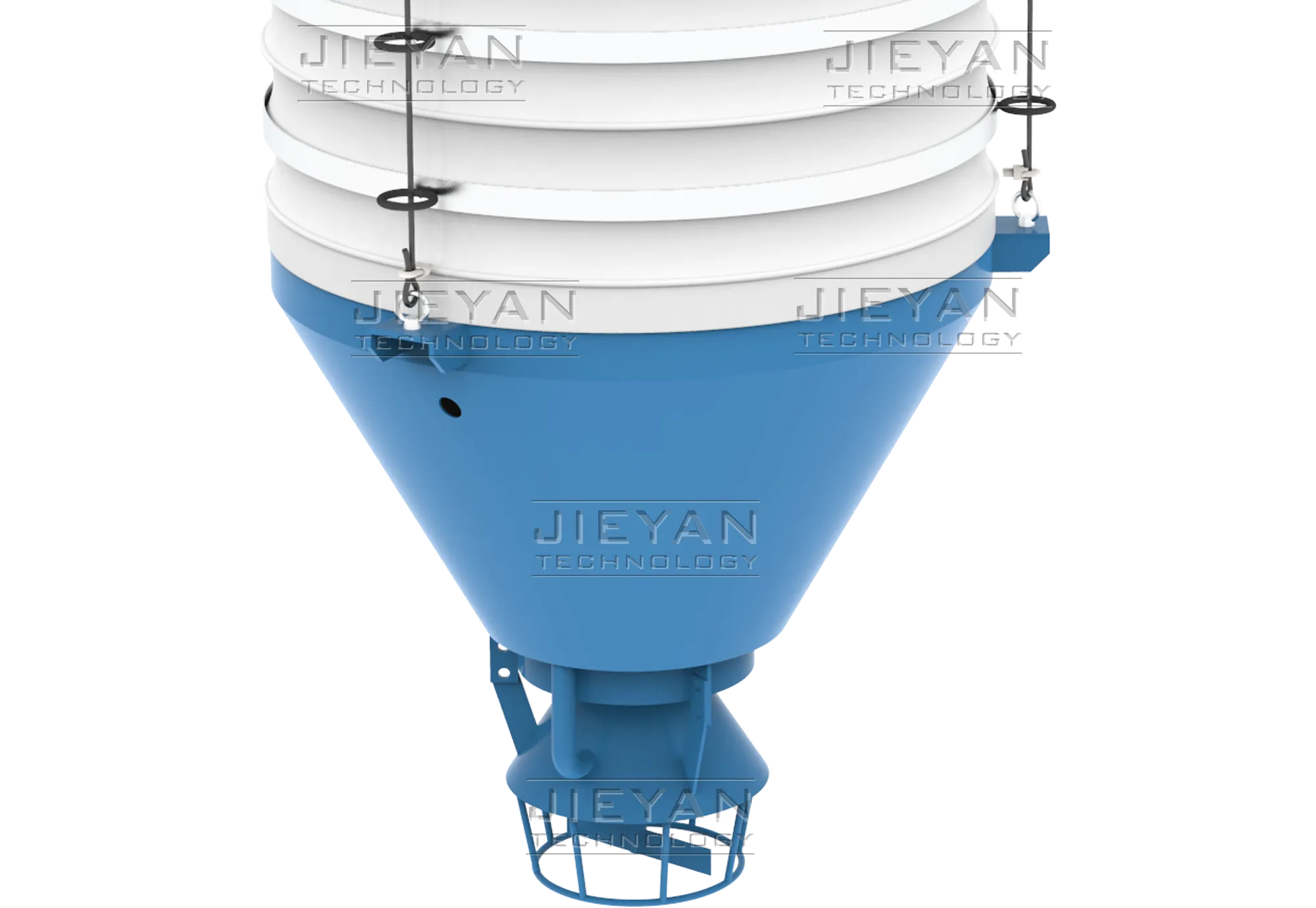

⑦ Inner cones materials option:

•

carbon steel

•

stainless steel(304.316)

•

abrasive resistant steel

⑧Rotary materials level switch(optional)

Technical Features

Triple-Rope Winch, Powerful Drive

The three-rope winch system with triple lifting points ensures exceptionally smooth and stable operation. Combined with a K-series gear motor delivering over 96% efficiency and superior overload capacity, it's engineered for the toughest heavy-duty applications.

Reinforced Core Components

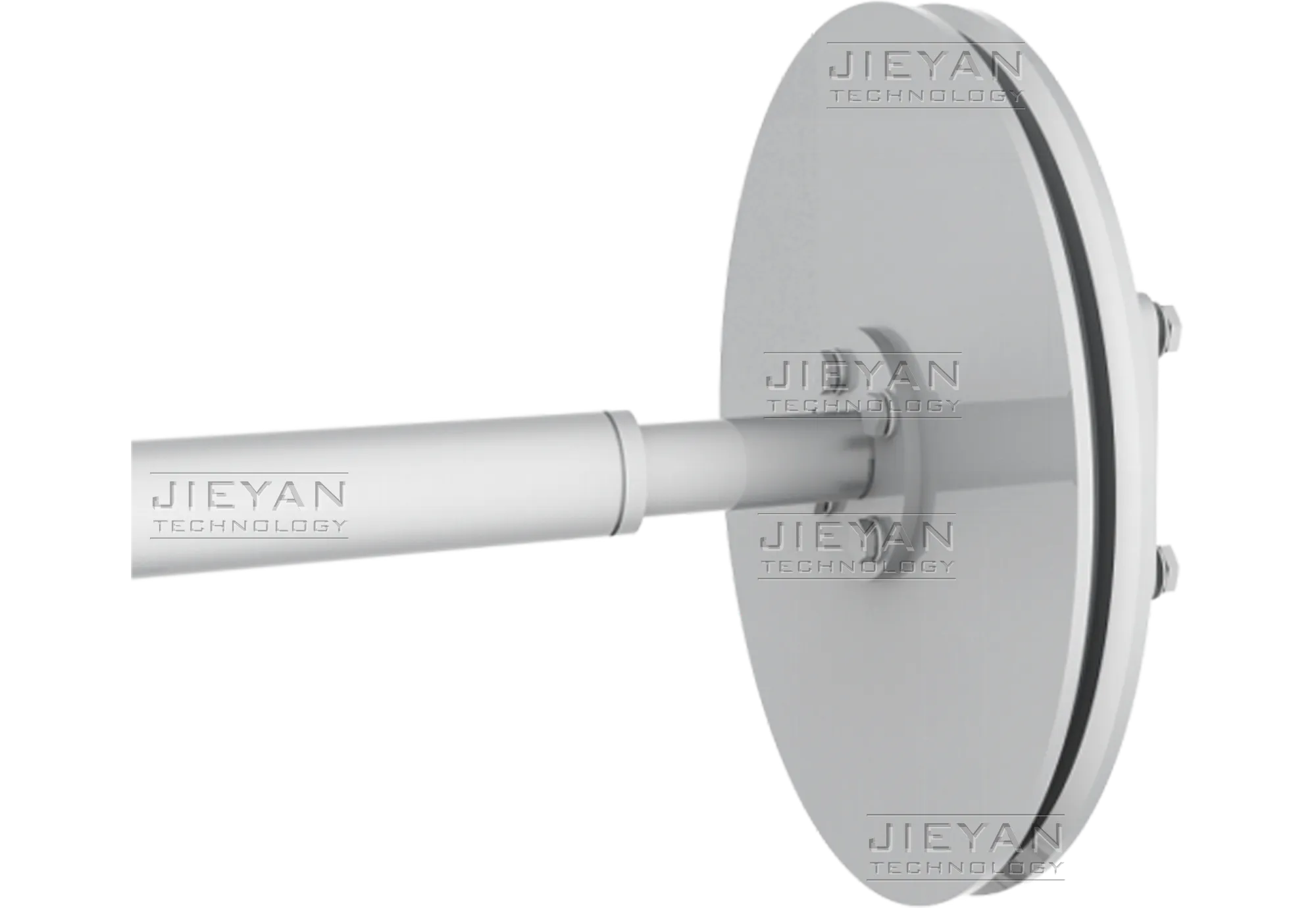

Heat-treated and precision-finished shafts and winches feature smooth surfaces that minimize wire rope wear. All machined components are zinc-plated for enhanced durability against corrosion and abrasion.

Durable Dust Sleeve

Constructed from wear-resistant materials like polyester, PVC or Hypalon with 1.0mm+ thickness, the sleeve features internal steel reinforcement for maximum strength and minimal friction, ensuring long-term rope protection.

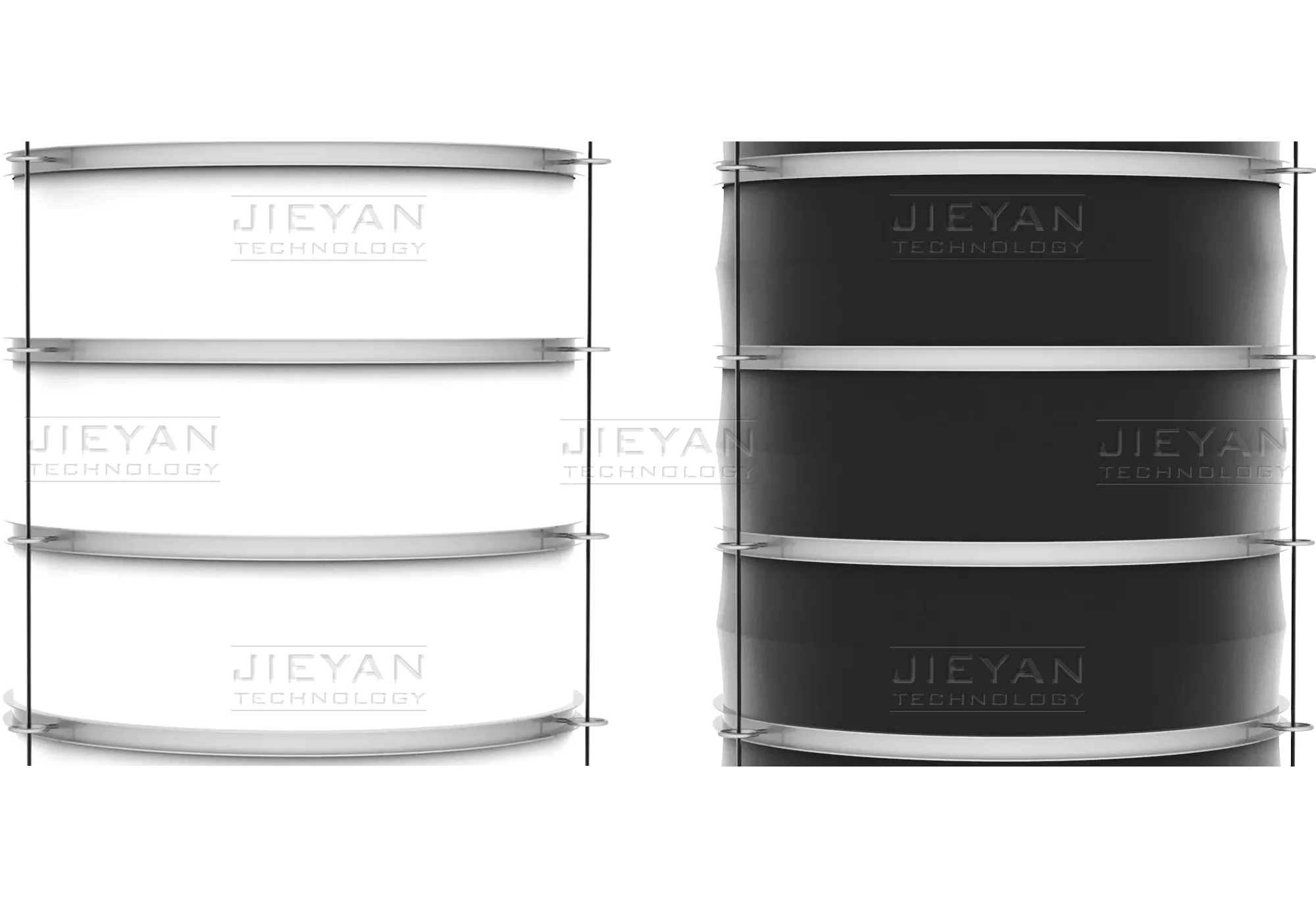

Configurable Wear-Resistant Liners

Standard Q355B inner cones can be upgraded with NM abrasion-resistant steel, stainless steel options, or specialized linings including ceramic, UPE and tungsten carbide hardfacing for extreme wear applications.

Smart Limit Protection

Fully adjustable limit switches with spare settings and standard slack rope detection prevent overtravel and derailment, ensuring operational safety and equipment protection.

Flexible Level Monitoring

Choose from rotary paddle, vibration, and differential pressure level switches to achieve precise monitoring across various materials and installation conditions.

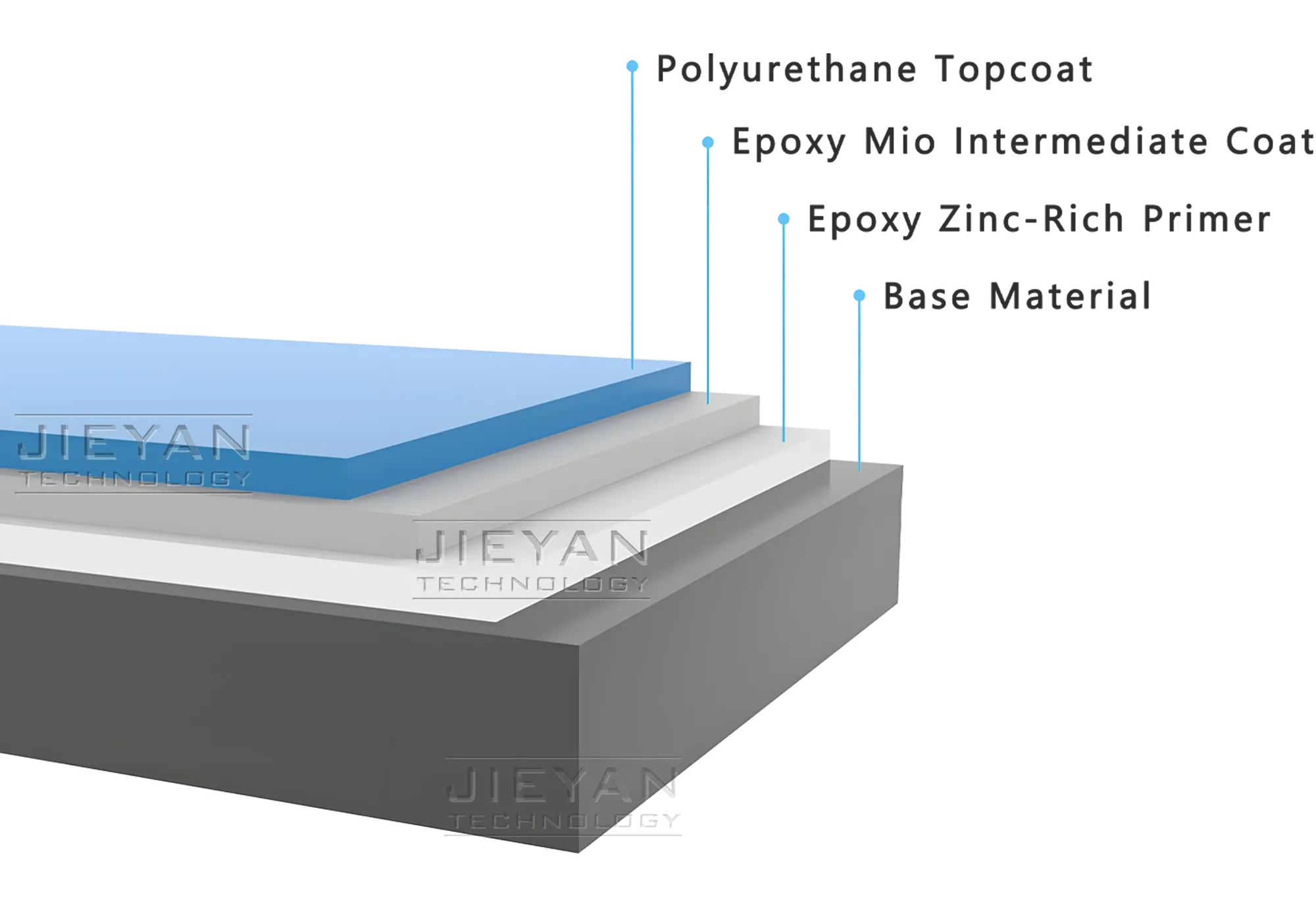

Professional-Grade Coating

SA2.5 blasting preparation combined with a three-layer coating system (zinc-rich epoxy, micaceous iron oxide, polyurethane) delivers ≥200μm protection against corrosive environments.

Intelligent Control System

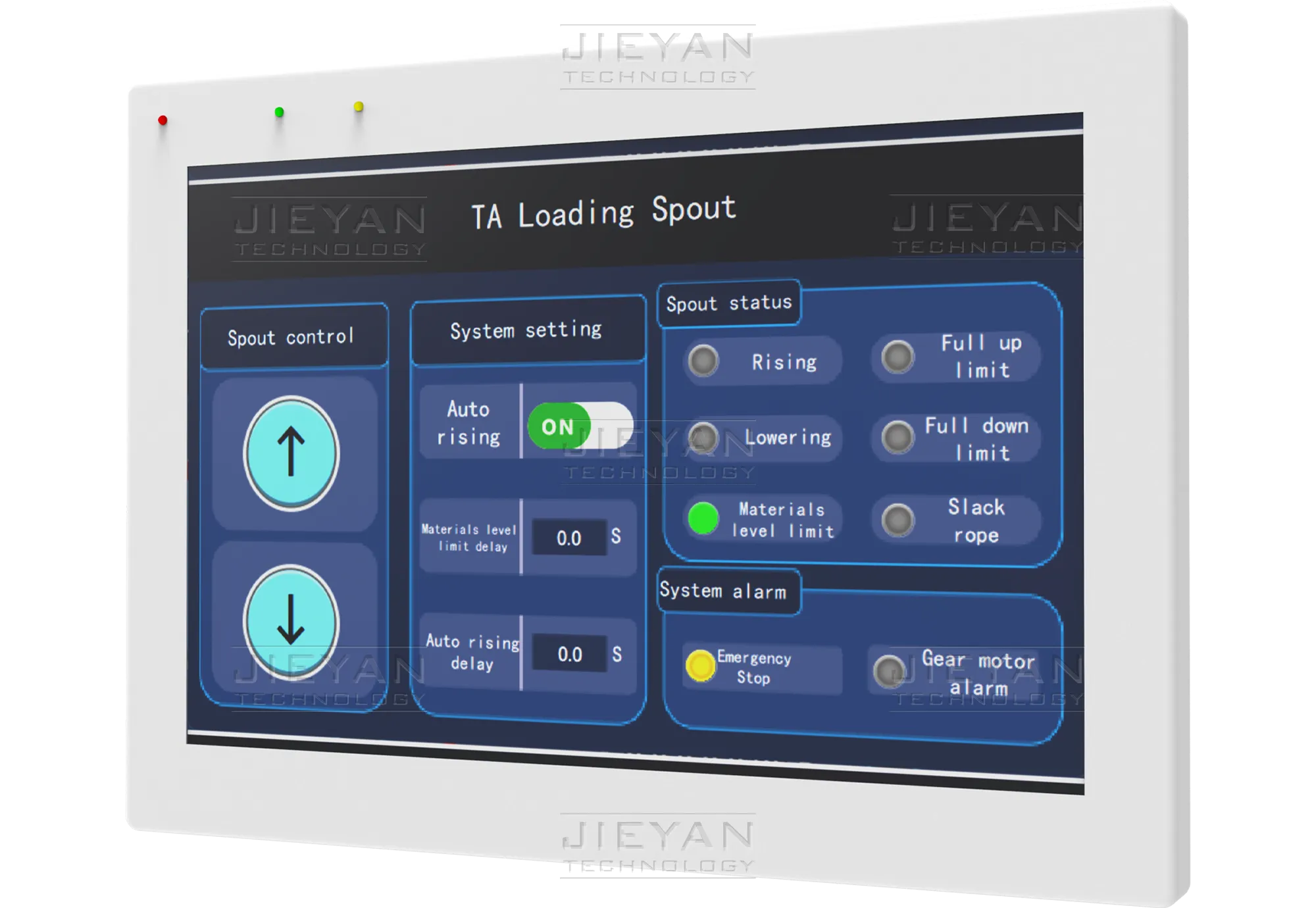

Featuring Schneider components with wireless remote and PLC+HMI interface, the system supports Ethernet connectivity for seamless integration into plant control networks.

Integrated Fan & Custom Design

Optional integrated fan provides compact layout, while custom-designed inlets, outlets and lifting points ensure perfect adaptation to your specific site requirements.
