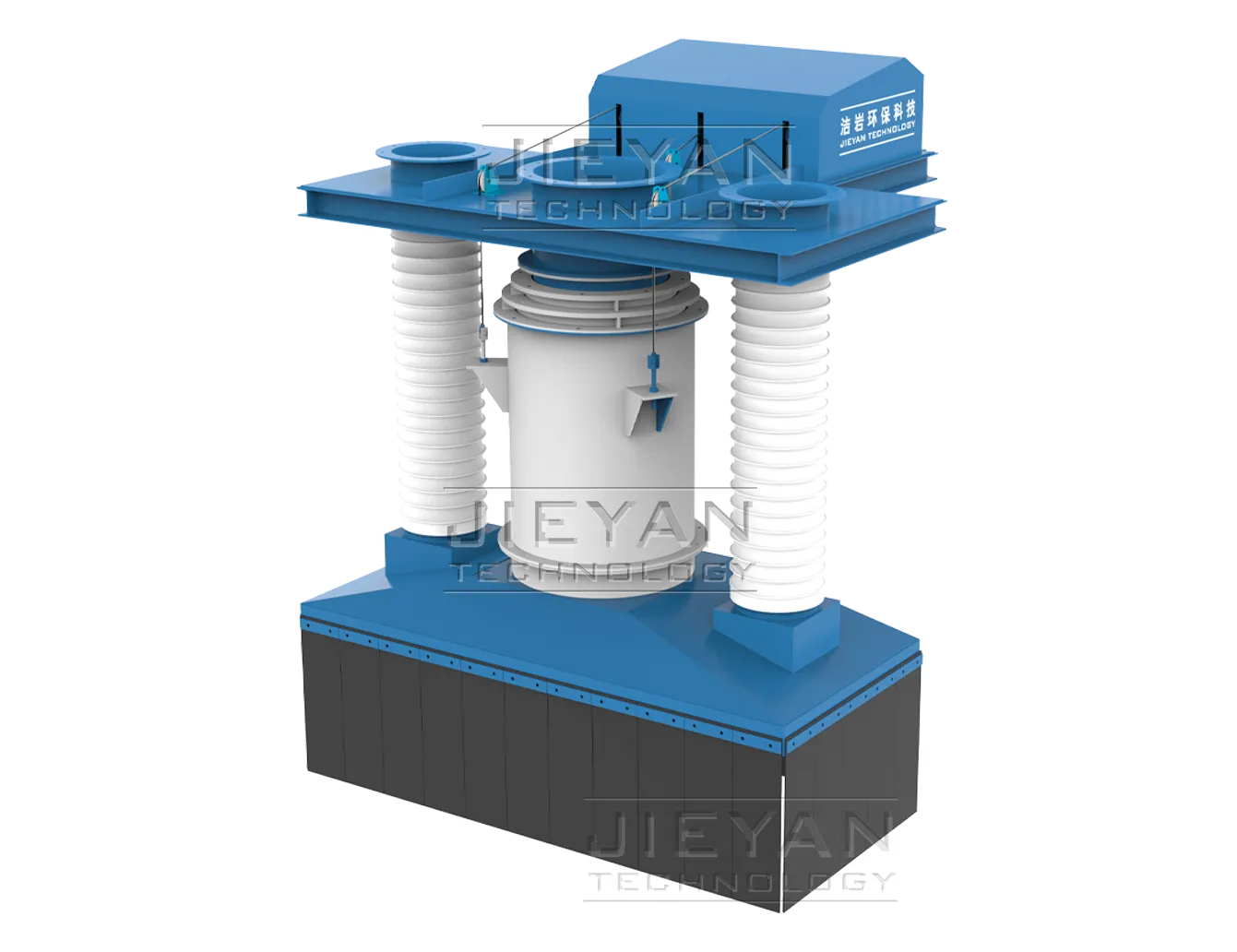

TA Open Vehicle Loading Spouts

The TA series loading spout is designed for loading bulk materials into open trucks. With a maximum capacity of 1,000 T/H, it meets the requirements of most operational scenarios. Its steel inner tube can be freely extended and retracted via a lifting mechanism. The spout outlet features a double-layer dust skirt and an automatic lifting function, ensuring it stays close to the material pile to effectively suppress dust during loading. Additionally, the TA series is equipped with a dust collection port for connection to an extraction system, enabling further dust control. Thanks to its reliable performance, it is widely used in ports, metallurgy, mining, building materials, chemical processing, and other industrial fields.

•

Truck loading

•

Port bulk loading

•

Mine yard

•

Carriage loading

•

Dry bulk material loading for open trucks and rail cars

Technical Consultation

jieyanchina@163.com

Structure and Principle

① Compact design for easy transport and installation

② Full up/down limit switch

③ Integrated control cabinet with remote panel

④ Three cable hoist system providing maximum spout stability

⑤ Slack cable limit switch

⑥ Inner cones materials option:

•

carbon steel

•

stainless steel(304.316)

•

abrasive resistant steel

⑦20 OZ. Polyester outer sleeve

⑧Flexible double layer rubber skirt

⑨Auto raise tilt probe

Technical Features

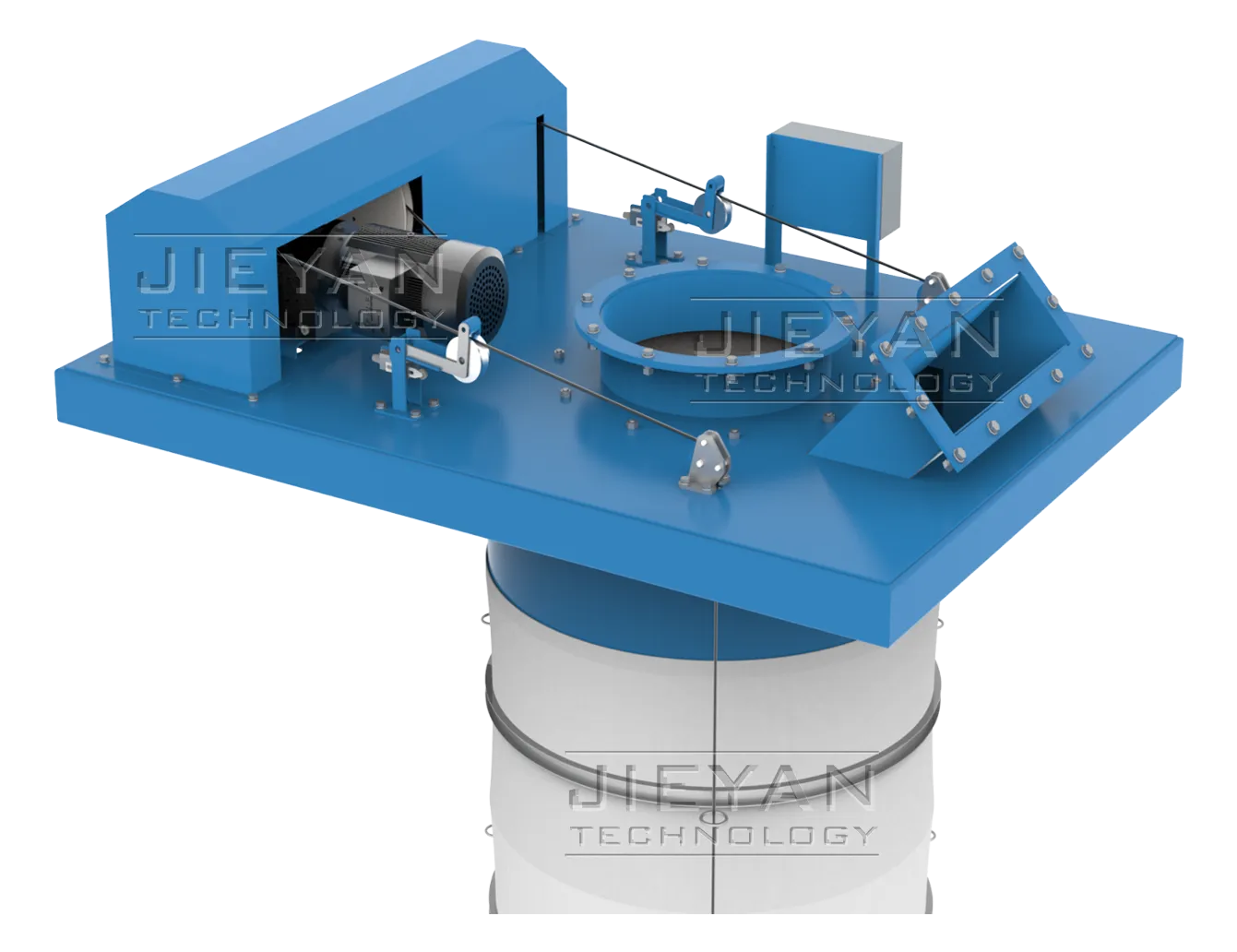

Triple-Rope Winch System

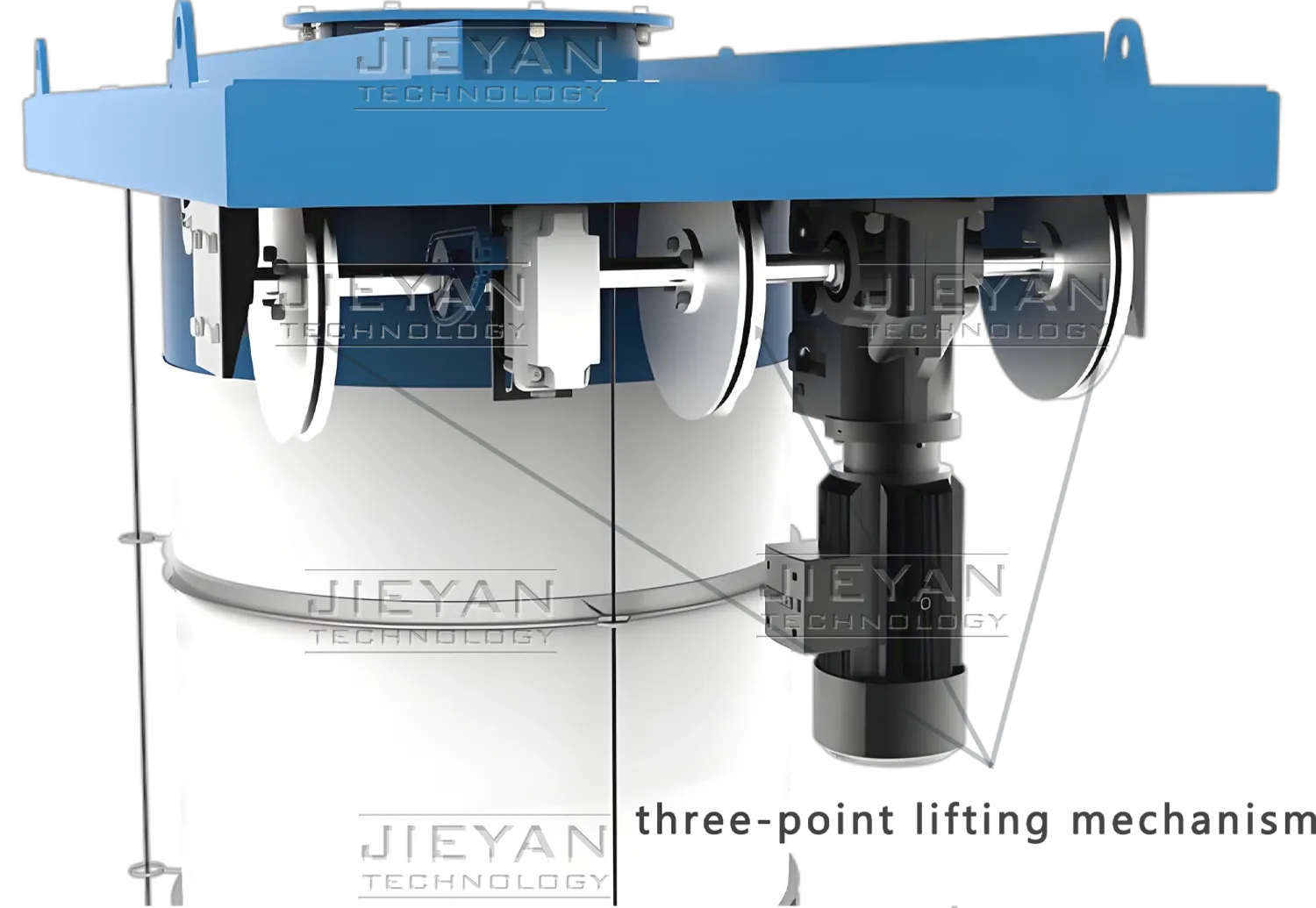

Our three-point lifting mechanism with K-series gearbox delivers over 96% mechanical efficiency. This robust design ensures smooth operation with exceptional overload capacity, making it ideal for heavy-duty applications where reliability matters most.

Enhanced Core Components

Precision-machined shafts and winches undergo heat treatment for superior finish that protects wire ropes and extends service life. All machined parts feature zinc plating for excellent wear and corrosion resistance.

Durable Dust Sleeve

Constructed from wear-resistant materials like polyester, PVC, or Hypalon with 1.0mm+ thickness. Internal steel reinforcement and galvanized guide rings provide structural integrity with low-friction operation for extended rope life.

Configurable Inner Tubes

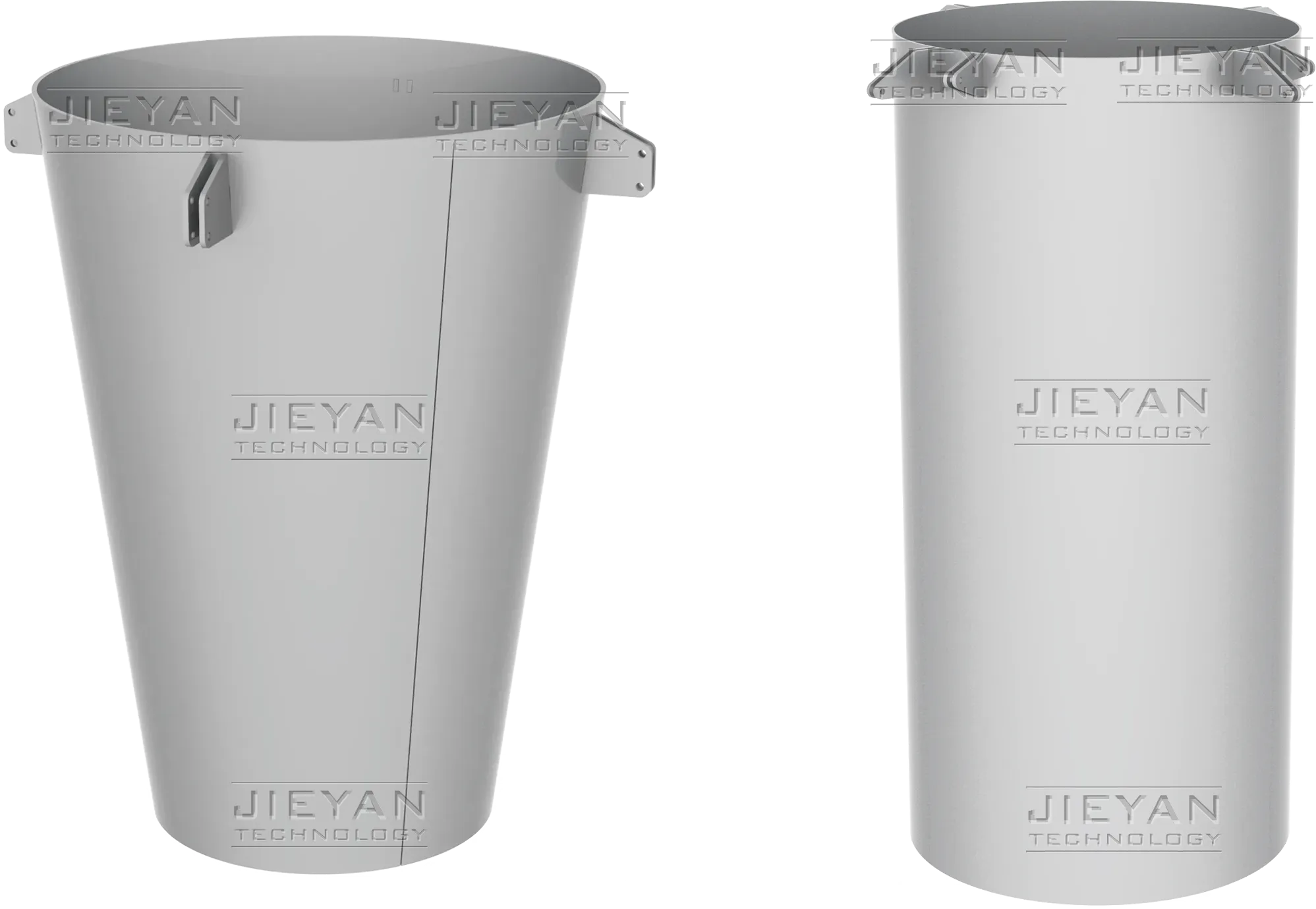

Standard Q355B construction with options including NM wear-resistant steel, 304/316 stainless steel. Available ceramic, UPE, or hard-faced linings adapt to various materials and operating conditions.

Smart Limit Protection

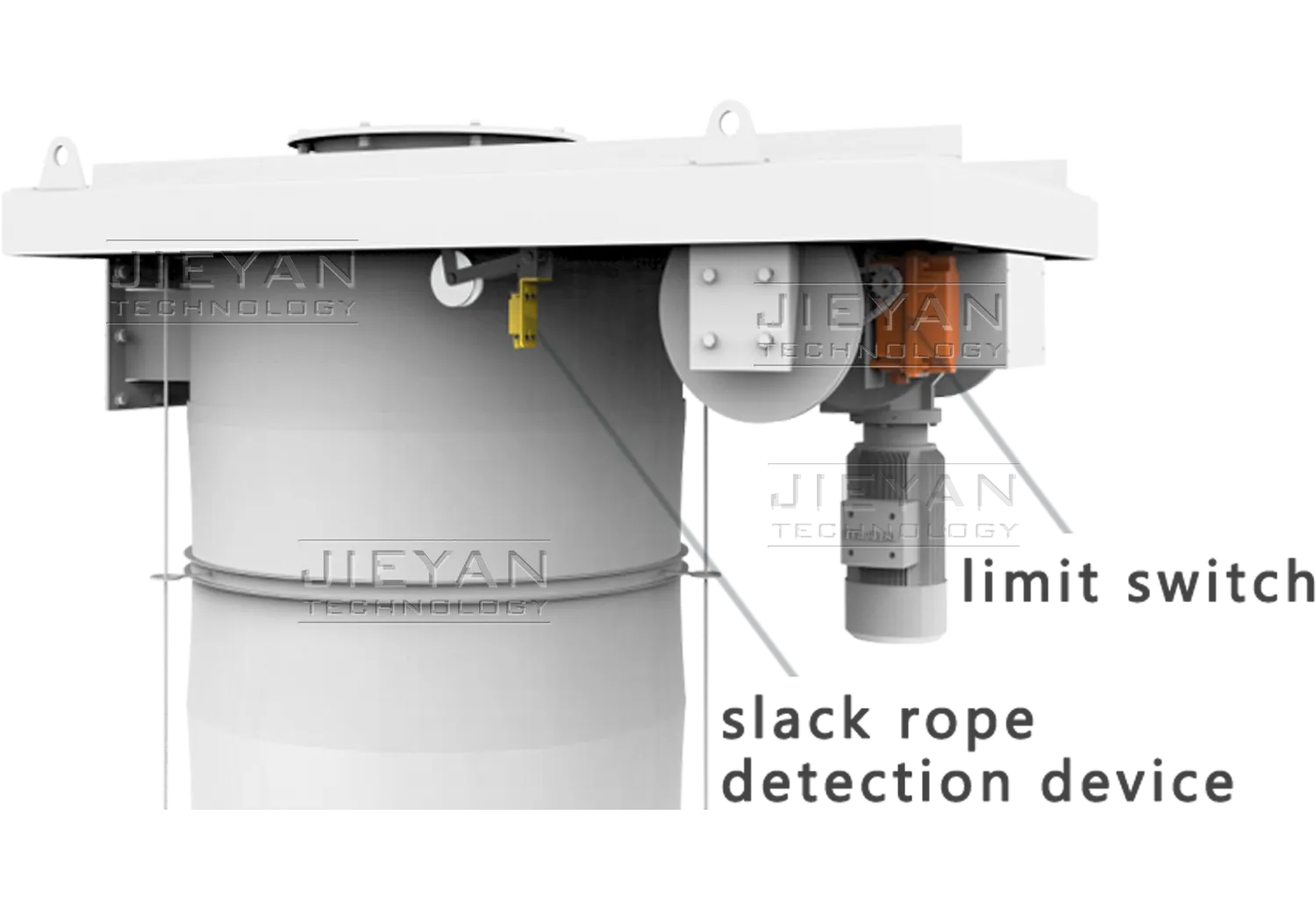

Standard adjustable limit switches and slack rope detection prevent over-travel and derailment. Multiple safety features ensure secure operation in demanding environments.

Flexible Level Monitoring

Compatible with tilt, rotary paddle, and vibration sensors for precise level detection. Customizable automation solutions meet specific monitoring requirements.

Double Skirt Sealing

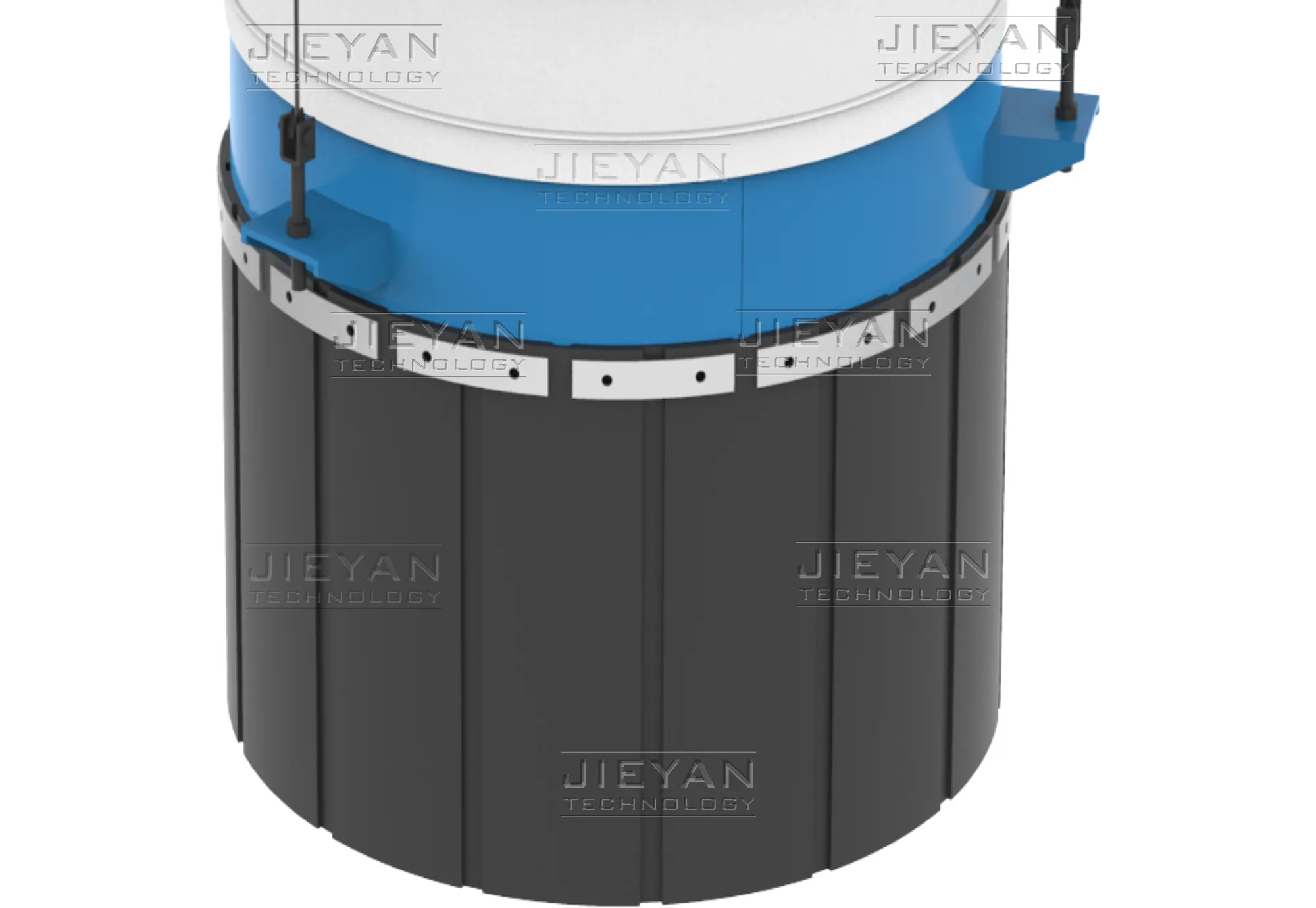

Two-layer rubber skirt with reinforced wear-resistant design creates a tight seal with stockpile, effectively containing dust to meet environmental standards.

Professional-Grade Coating

SA2.5 blasting preparation with three-coat system: zinc-rich epoxy, micaceous iron oxide, and polyurethane topcoat. 200μm+ thickness ensures industry-leading corrosion protection.

Intelligent Control System

Schneider components with PLC and touchscreen interface, including wireless remote. Ethernet connectivity enables seamless integration with existing control systems.
